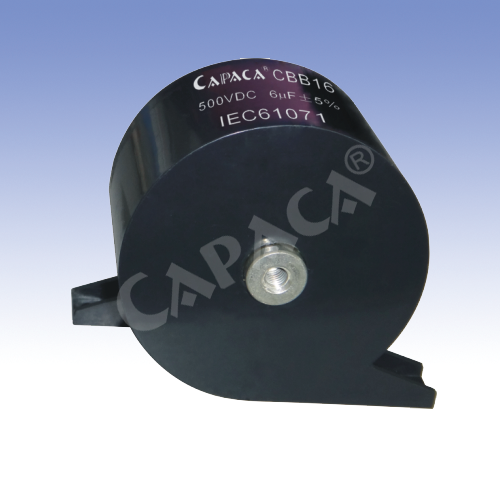

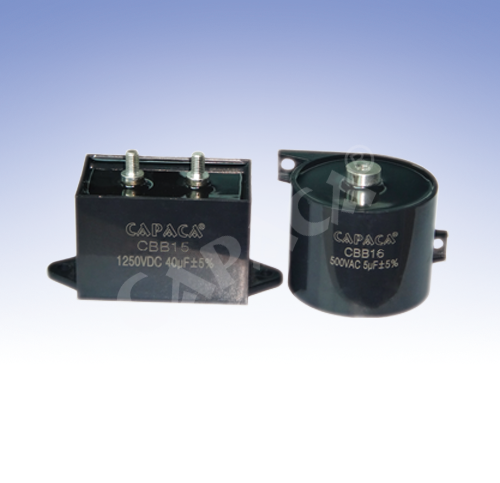

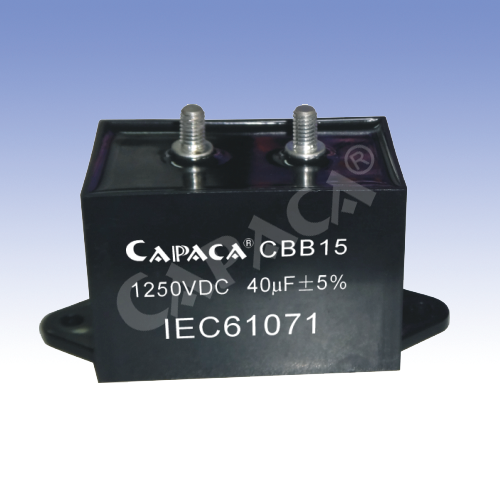

◆系列SERIES CBB15 CBB16 (高压、脉冲电容器) High voltage Pulse Capacitors

◆特 性  FEATURES

    采用特殊薄膜蒸镀工艺,全膜设计,损耗小内部温升小,耐峰值电流冲击能力强,自感及等效串联电阻小。

It adopts special film evaporation technique and full film design。With many advantages including.

符合RoHS 环保要求    Complied to the RoHS directive

◆应用范围 APPLICATION

     适用于电焊机，电源设备,变频器,超声设备,大功率开关电路，保护IGBT/GTO开关器件及特大电流通过的场合.

For electric welding equipment, power supply, transducer, ultrasonic equipment, large power switch circuit, protection switching device IGBT/GTO large current in the circuit.Small loss and internal temperature rising。stringer resistance to peck current。Small self induction and equivalent series resistance 。

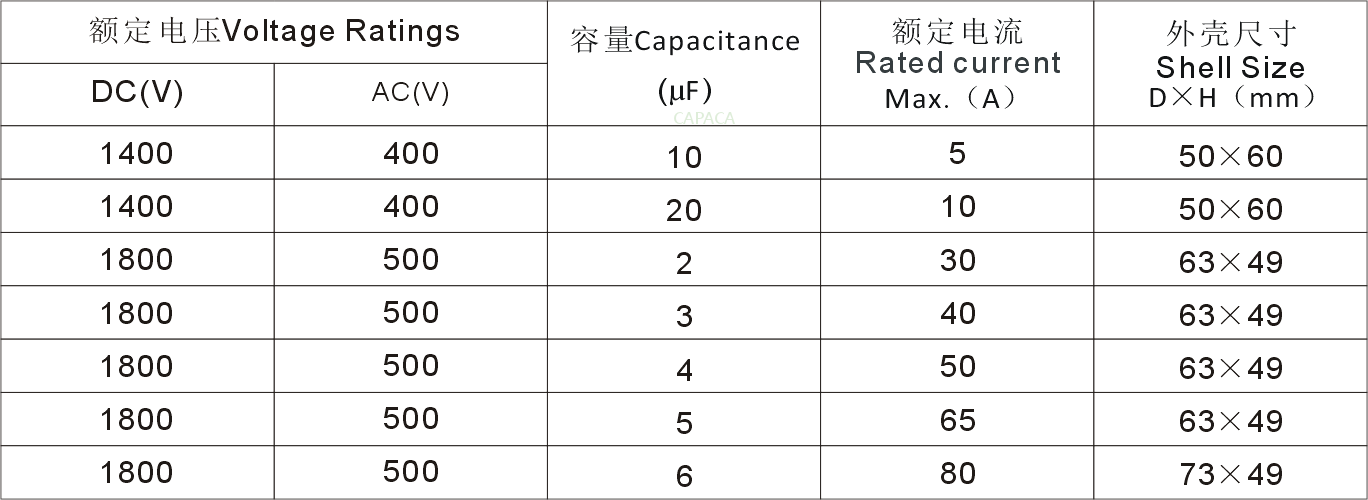

◆ CBB15规格尺寸表 Standard size table

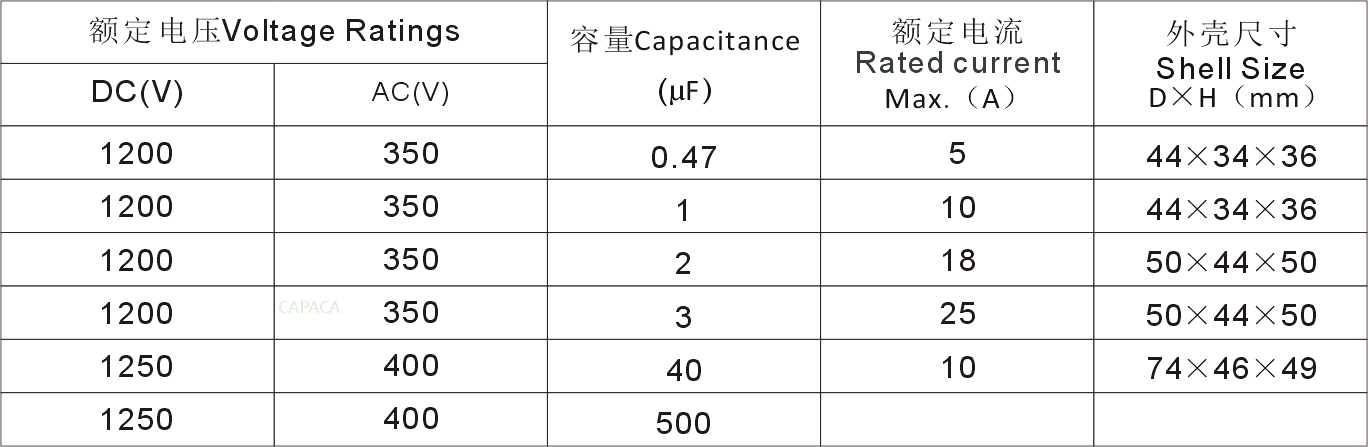

◆ CBB16规格尺寸表 Standard size table
